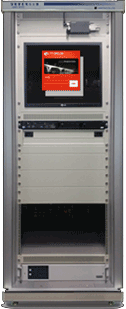

■ Street Lights / Security Lights monitoring and control system
-
GMC-300S
Features- Web based control system
- Search for the faulty power distribution box by the address location, name, telephone number
- Data base support for the infomation management of faults and facilities
- Real time report to the mobile terminals in case of emergency situation occurrence
- Apply Google map / OPEN API
- Database built up on the status of the reception and procession of civil petitions and maintenanve materials management
- Provide mobile Web interface for smart phone user
- Monitoring/control function can be extended such as Parks's light/ Fountain / Pump area
Specifications- Control program: Web based intlligent control program
- Database: MS-SQL 2005
- Web server: Information Interface Service(IIS)6.
- OS: Windows 2008 Server

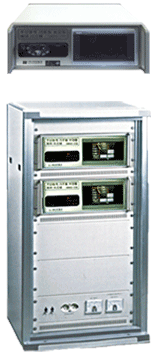

■ Wireless main control unit for street Lights and security Lights
-
GBNS-200DG
Feature- Wireless remote switching on/off control(for all or by groups)
- Operation data changeable remotely by RF
- Built-in sunrise and sunset time table and switching(Selectable automatic or manual operation)
- Configuration of wired and wireless relay network and system expansion by adding relay switches
- Available RS232 interface with central control system
Specifications- Power supply: AC 110V/220V ± 10%, 60Hz
- Transmission Frequency: 142.5125MHz ~ 159.6875MHz
- Power Output: 20W and less
- Temperature: -20℃ ~ +50℃
- Screen & input: LCD & Touch Screen
- Size: W483 X H177 X D414(mm)
