Street Light Monitoring and Control Switch
#monitoring

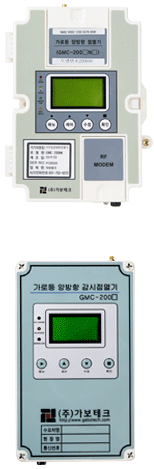

■ Street Light Monitoring and Control Switch
-
GMC-200 / GMC-200N
Feature- Monitoring of distribution box and streetlight condition and notification of control
- Permanent power saving and last operation data permanent preservation function
- LCD liquid crystal display and manual operation function
- Built-in secondary battery and charging function
- Individual lap control and monitoring function(GMC-200SN)
- Control of individual flicker through communication network
- Data reception, correction, and checking function using a communication network
- Magnet(4 contact points) individual control and reservation time setting function(GMC-200N / SN)
Specifications-
Frequency:
800MHz ~ 2200MHz(network) 424.7125MHz ~ 424.9500MHz or 2.4GHz (Zigbee)individual controller
- Antenna:Dipole antenna & Helical antenna
- Term network: CDMA(3G)
- Output: 10mW or less(424MHz Bandwidth)
- Fuse: AC220V / 1A
- Temperature: -20℃ ~ +50℃
- Power supply: AC220V ± 10%, 60Hz
-
Size:
GMC-200N/SN_H200 X W150 X D105 GMC-200/S_H250 X W150 X D100(mm)
■ 모션감지센서
-
GMS-200
제품기능- 차량 및 보행자 판별 감지
- 주행, 주차 및 정차 차량구분
- 사람 및 차량 카운트 기능
- 특정영역에 대한 모션감지 기능
- 모션감지를 통한 빅데이터 모션감지
- 딥러닝기능
제품규격- 사용전원: DC5V
- 휴즈용량: AC220V / 10A
- 이미지픽셀: 130만화소이상
- 해상도: HD(640X480)이상
- 사용온도: -20˚C ~ +50˚C
- 지원OS: Windows 10
- 인터페이스: USB2.0
- 크기: H241 X W147 X D178(mm)
■ Wireless Street Light Switch
-
GRC-100
Feature- ID setting and division control function
- Wireless remote point / light control function and operation data change function
- Wireless remote and GPS(optional)time correction
- Permanent power saving and last operatiion data permanent preservation function
- LCD liquid crystal display and menual operation function
- Additional individual ID setting function for fountain and special illumination facility
Specifications- Frequency: 142.5125MHz ~ 159.6875MHz
- Antenna: Helical antenna
- Power: AC220V ± 10%,60Hz
- Receive sensitivity: -117dBm
- Fuse: supply 10A, output 5A
- Temperature: -20˚C ~ +50˚
- Size:H195 X W145 X D85(mm))

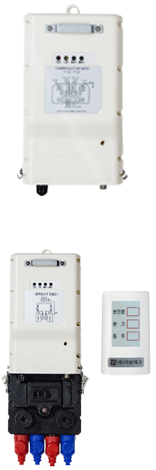

■ Wireless Street Sight Monitoring and Switching Controllers
-
GMU-01SR / GMU-01SCR
Feature- Individual ID setting function using infrared(IR) port
- Wireless remote control individual point light control and setting function
- individual streetlight lane current status monitoring function
- Fault detection function
- LED display function(output, fault)
- Bolt (hexagonal) tightening power connection and separation is easy
- Dimming control function(option)
Specifications- Frequecty: 424.7125MHz ~ 424.9500MHz or 2.4GHz Bandwidth(Zigbee)
- Channel spacing & channels: 12.5KHz, 20ch
- Antenna: PCB antenna(built-in)or Helical antenna(built-in)
- Power: AC220V ± 10%,60Hz
- Fuse: AC220V/10A
- Rated output: 220V/3A
- Trans, output: 10mW or less
- Sensitivity: -117dBm
- Temperature: -20˚C ~ +50˚C
-
Size:
H176 X W105 X D51(mm) H311 X W105 X D63(mm)(Integral type)
■ 단자대
-
단자대
제품기능- 가로등/보안등 자동점멸기의 부속자재
- 표찰의 관리번호 부여 관리프로그램에 등록 가능
- 점멸기의 이력화, 위치확인가능
- 폴리에스터라벨 사용 인쇄의 번짐 및 지워짐 방지
- 간편한 구조로 설치가 용이
제품규격- 크기: GBCT-01N/ 02N(H163 X W85 X D70)
■ 접속재
-
NAGP-400SM
제품기능- 가로등주 내부 케이블 접속 및 절연저항 측정 용이
제품규격- 정격전류: 50A
- 정격전압: AC220V
- 재질: 합성수지재
- 방수등급: IP67
- 크기: H56 X W56 X D64(mm)
