Distribution Box for Street Lamps

■ Urban image type

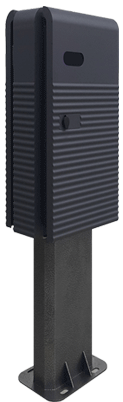

  • NAGP-400SM

    Feature
    • Apply smooth texture and Applicable various colors
    • Convenience of constuction and maintenance
    • Product Stability
    • Enviroment-friendly products
    Specifications
    • Voltage: Single-phase 2 wire type 220V, (electric current) 200A or less
    • Material:Stainless steel plate(box and holdinghole Aluminum injection(outside door))
    • Size:H850 X W620 X D330(mm) (excluding stand)

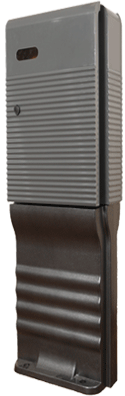

  • NAGP-400SP

    Feature
    • Stainless steel plate, Aluminum Material
    • Three-dimensional,Strong, Tenderness, Semi-permanent, Enviromentallly friendly
    • Improving the urban beauty with various colors
    • Easy installation and cityscape by the enviroment-firendly design
    • Adjustalbe height
    Specifications
    • Power supply: AC220 ± 10%, 60Hz
    • Material:Stainless / Aluminum(Door)
    • Input side capacity: Demand Department Standard
    • Number of circuits: 4baic circuits
      (2circuits at all times/ 2 circuits at sequential time)
    • Base: Holding Type(NAGP-400SP)
    • Size:

      Holding Type_H1250 X W580 X D340(mm) Stand-alone Type_H1600 X W680 X D400(mm)

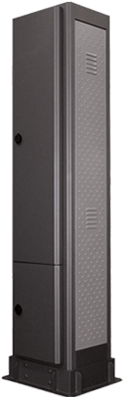

  • Hae neul-400M

    Feature
    • Wireless remote control switch installable
    • Suitable for the small space by the space efficient design
    • Easy workability by securing the power cable inlet space
    • Pedestrians safety secured by installing fixing bolts and hinges inside the power distribution box
    Specifications
    • Voltage: AC single phase 2 wires 220V
    • Material: Stainless steel / Aluminum
    • Number of circuits: 4 basic circuits
    • Size:H1600 X W380 X D370(mm)

  • DNR-400P

    제품기능
    • 서울시 우수 공공디자인 인증
    • 심플한 정사각형 디자인
    • 슬림형 구조로 설치공간을 최소화 하여 보행자길 확보
    • 세련된 이미지로 도시미관 개선
    제품규격
    • 사용전원: AC220 ± 10%, 60Hz
    • 재질: 스테인레스
    • 입력측 용량: 수요부 규격
    • 회로수: 4회로
    • 크기: H1820 X W380 X D380(mm)

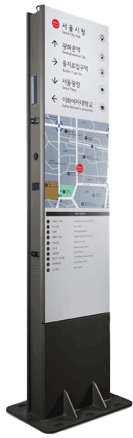

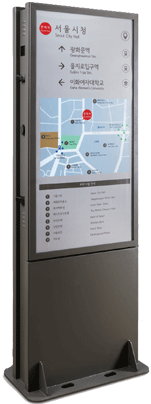

  • NCP-500

    Feature
    • Fusion type distribution box
      (1800type: NCP-400,NCP-400S)
    • Fusing dedstrian guide signs for public information on the function of the power distribution facility
    • Slim type construction minimizes installation space
    • Completion of structure review (maximum instantaneous wind speed 60m/s)
    Specifications
    • Stand alone, One-side door open
    • Material: Stainless / Steel
    • Number of circuits 4~8 Phase
    • Input side capacity: demend Department Standard
    • Size:H1600 X W600 X D150(mm)

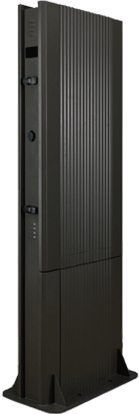

  • NAP-500

    Feature
    • Slim type construction minimizes installation space
    • Practical design image
      classic images and simple modern images
    • Complete of structure review
      (maximum instantaneous wind speed 60m/s)
    Specifications
    • Stand alone, One-side door open
    • Material: Stainless / Steel
    • Number of circuits 4~8 Phase
    • Input side capacity: Demend Department Standard
    • Size:H1600 X W600 X D130~180(mm)

  • NCP-400, NCP-400S

    Feature
    • Slim type construction minimizes installation space
    • Practical design image
      classic images and simple modern images
    • Complete of structure review
      (maximum instantaneous wind speed 60m/s)
    Specifications
    • Stand alone, One-side door open
    • Material: Stainless / Steel
    • Number of circuits 4~8 Phase
    • Input side capacity: demend Department Standard
    • Size:H1600 X W600 X D130~180(mm)

■ Pole type

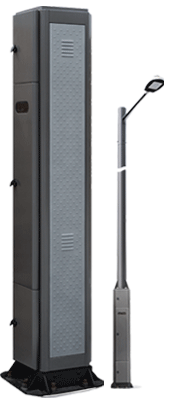

  • HNS-400

    Feature
    • Space-efficient design for small space
    • Convenient construction and maintenance due to securing of lower entrance space, providing safety
    • Unnecessary appearance improvement by using fixing bolt and hinge inside
    • Two-tone painting of simple square design and sophisticated pattern
    • Completion of structure review(12M)
    Specifications
    • Three-stage separation type
    • Voltage: AC single phase 2 wire 220V
    • Material: Stainless / Aluminum
    • Circuits: 4circuits
    • Size:H2100 X W380 X D370(mm)

■ Image type

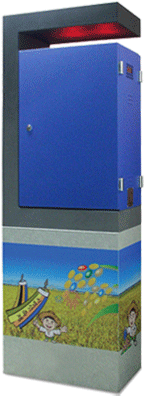

  • NGP-400S

    Feature
    • Product diversity, Local uniqueness, Local publicity effect
    • Indirect lighting and landscape image effect(NGP-400S)
    • Ad Sticking prevention(use sticker prevention paint)
    • Eco-friendly imaging based cover
    • Sophistication of product
    Specifications
    • Power supply: AC220V ± 10%, 60Hz
    • Input side capacity: Demend Department Standard
    • Material: Stainless
    • Number of circuits: 4circuits

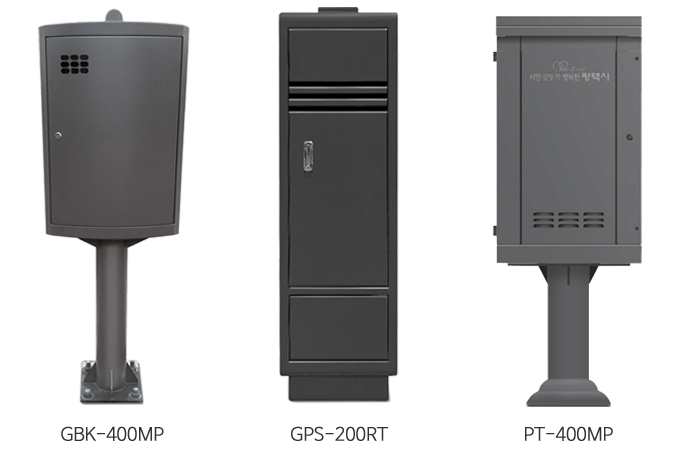

    • Base: Holding Type GBK-400MP
      Stand-alone Type NGP-400S, GPS-200RT
    • Size:

      GBK-400MP_ H1780 X W550 X D300

      GPS-200RT_ H1600 X W630 X D400

      NGP-400S_ H1100 X W650 W350(mm)

■ Eco-friendly type

  • DGP-400

    Feature
    • Made of stainless steel and eco-friendly synthetic wood material
    • Improved urban beauty by combining classic images and simple modern images
    • Slim type construction minmizes installation space to ensure walkway path
    • Application of door open prevention device using magnetic
    Specifications
    • Material: Stainless / Synthetic wood
    • Input Capacity: Demand Department Standart
    • Base: Holding Type
    • Circuit: Basic 4circuits
    • Size: H1760 X W350 X D350(mm)

■ Safety type

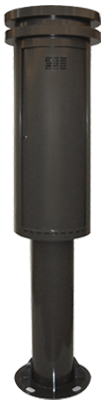

  • GNR-400MP

    Feature
    • Cylindrical control box
    • Strong, Semi-permanent
    • Power falure display function and landscape lighting
    • Consideration of pedestrian safety and convenience maintenance
    Specifications
    • Stand alone, One-side door(Slide type)
    • Power Supply: AC220 ± 10%, 60Hz
    • Material: Stainless
    • Input Capacity: Demand Department Standard
    • Number of circuit: 4Phase
    • Size: H1950 X ∅480(mm)
